MONITORING AND CONTROL DEVICE

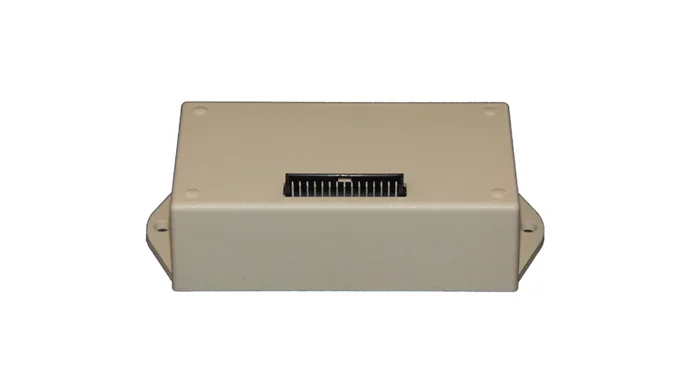

UNS10185
The UNS10185 module is the smallest and most compact of our monitoring and control systems. Thanks to the digital outputs and RINA approval, it can also be used as an alarm and stop system for certified motors. Possibility of hardware and software customization for special applications.
TECHNICAL SPECIFICATIONS
Case dimensions Inputs Outputs Communication port Weight | 145 x 66 x 50mm 12/24V - <250mA 1 x Frequency 5 x Analogue 3 x Digital ON/OFF 4 x Transistor push-pull, max 1A 1 x CAN Bus + 1 x RS232 / NMEA0183 500g | |
DOCUMENTS
DRAWING
