4,3" MINI DISPLAY
UNS10191
Compact monitoring and control system designed to measure the main engine parameters in one compact and easy to use instrument. It offers a 4,3” resistive touch screen display. A selection of analog inputs and digital outputs allow direct acquisition of measure sensors without any additional signal converters. One J1939 CAN Bus port can be used to interface multifunction navigation systems.
![Interfaccia UNS10191 Interfaccia UNS10191](images/_04_3icmuwf8.png)

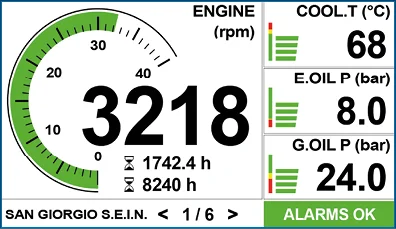

Main page
Elegant and innovative design for monitoring different engine inputs.
![Interfaccia UNS10191 Interfaccia UNS10191](images/_02_ucql81ig.png)

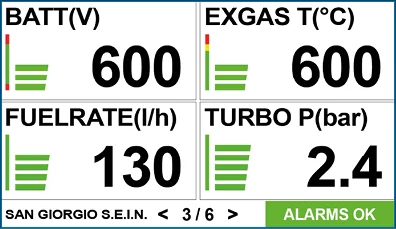

Page view
Monitoring page for single engine.
![Interfaccia UNS10191 Interfaccia UNS10191](images/_03_zqdjcj20.png)

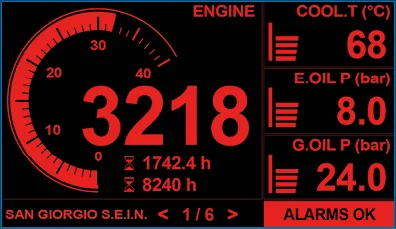

Night mode page
Example of page with analogue indicators for night mode view.
![Interfaccia UNS10191 Interfaccia UNS10191](images/_05.png)

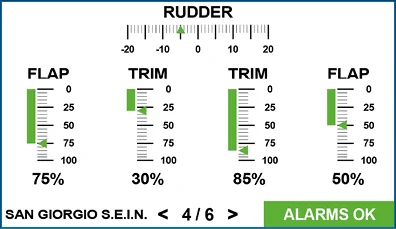

Boat trim
Page for monitoring rudder angle, flap and trim indicators.
TECHNICAL SPECIFICATIONS
Mounting hole Display Inputs / Outputs Power supply Weight | 118 x 78 x 32mm 107 x 67mm 4,3” color TFT LCD, high brightness 700cd 480 x 272pixel Resistive 4 x Analog inputs 0-300Ω / Outputs (NPN) 3 x Analog inputs 0-32V / Outputs (PNP) 1 x Frequency input W / pickup 1 x Analog input 0-3V / TA Current 2 x Digital outputs (PNP) 9-36V <500mA -20 +70°C IP64 180g |
