5" COMPACT DISPLAY
UNS10192

High performance compact monitoring and control system specifically designed for naval, professional and pleasure boats applications. It offers a 5” touch screen display with integrated ambient light sensor and special software designed for visibility in any light and operating condition. A selection of analog inputs and digital outputs allow direct acquisition of measure sensors without any additional signal converters. Two J1939 CAN Bus ports, one also compatible with NMEA2000 standard, can be used to interface multifunction navigation systems. It can be customised and programmed via USB interface.
Interfaccia UNS10192
Chain counter

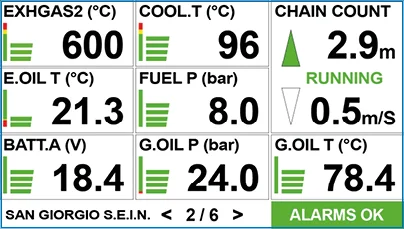

Display of chain position and ascent / descent speed.
Interfaccia UNS10192
Boat trim

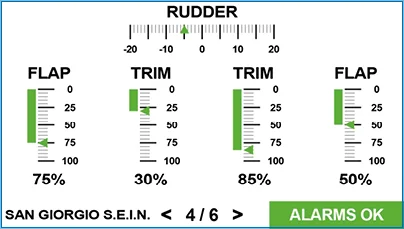

Page for monitoring rudder angle, flap and trim indicators.
Interfaccia UNS10192
Night mode page

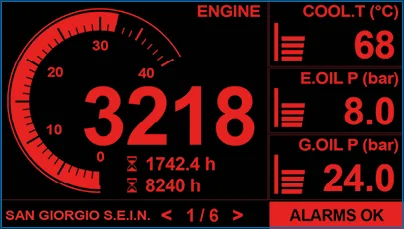

Example of page with analogue indicators for night mode view.
Interfaccia UNS10192
Alarms monitoring

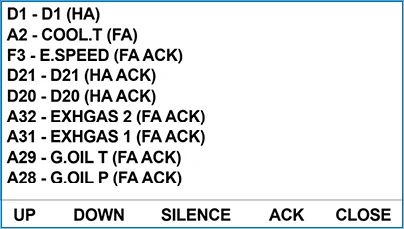

Example of page with list of saved alarms with date and time.
TECHNICAL SPECIFICATION

Mounting hole
Display
Frame

Inputs / Outputs



Communication ports




Power supply
Operating temperature
Protection grade
Weight
144 x 100 x 69mm
135 x 91mm
5” color TFT LCD, high brightness 900cd
480 x 272pixel
Capacitive
Satin anodized aluminum
Black satin anodized aluminum
4 x Analog inputs 0-32V / 4-20mA
4 x Analog inputs 0-300Ω
1 x Frequency inputs W / pickup
5 x Digital inputs/outputs
2 x CAN Bus 2.0B
1 x NMEA2000
1 x NMEA0183
1 x RS232/485
1 x USB OTG
9-36V <500mA
-20 +70°C
IP65
440g
Protective cover for display
