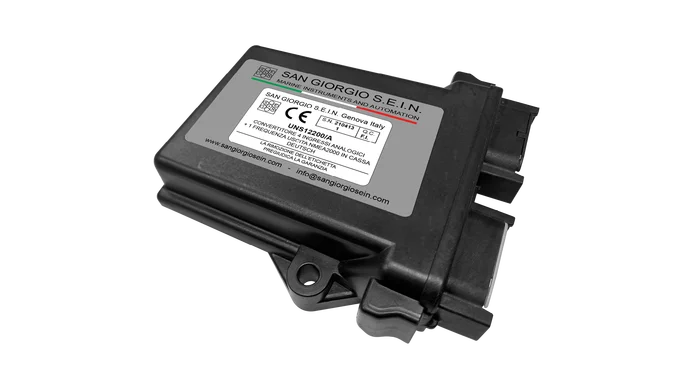

MULTIFUNCTION CONVERTER
UNS12200/A
Converter equipped with six analog inputs, one in frequency, two digital and one NMEA2000 output. It can be used to convert signals from measurement sensors to J1939 or NMEA2000 compatible standards.
TECHNICAL SPECIFICATIONS
Power supply Output Operating temperature | 133 x 118 x 35 mm 2 x Deutsch DTM06 12/24V 1 x Fuel level sensor 10-180Ω 1 x Fresh water level sensor 10-180Ω 1 x Waste water level sensor 10-180Ω 1 x Black water level sensor 10-180Ω 1 x NMEA2000 communication port -20 +70°C IP65 | |
