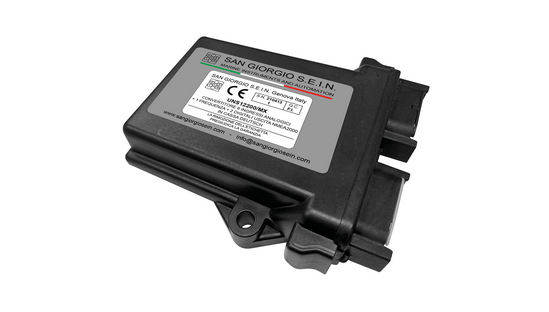

MULTIFUNCTION CONVERTER
UNS12200/MX
Converter equipped with four analog inputs, one in frequency and one NMEA2000 output. It can be used to convert signals from measurement sensors to J1939 or NMEA2000 compatible standards.
TECHNICAL SPECIFICATIONS
Power supply Outputs Operating temperature | 133 x 118 x 35 mm 2 x Deutsch DTM06 12/24V 1 x Engine speed 1 x Coolant temperature 280-22Ω 1 x Oil pressure 10-180Ω 1 x Fuel level 10-180Ω 1 x Battery voltage 1 x Rudder angle sensor 1 x Low battery voltage 1 x Low oil pressure 1 x High coolant temperature 1 x NMEA2000 communication port -20 +70°C IP65 | |
