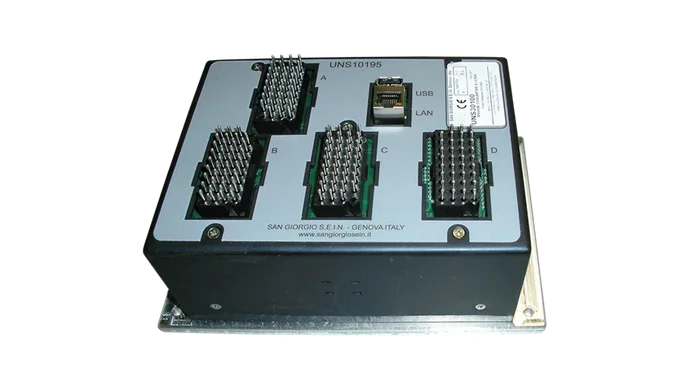

DATA CONCENTRATOR MODULE
UNS30100
Very high performance monitoring and control system designed to convert various analog and digital inputs. The instrument can be customized and programmed via LAN, WiFi and USB interface.
TECHNICAL SPECIFICATIONS
Mounting hole CPU and Memory Data memory Protection grade Approval certificate | 220 x 143 x 76mm 183 x 135mm Advanced Hybrid CPU Dual Cortex A9 128MB Flash + 16GB SD Card 8 x Analog inputs 0-300ohm 16 x Analog inputs 0-10V/4-20mA 8 x Analog inputs NTC 0-100KΩ 8 x Analog thermocouple inputs 6 x Analog inputs 0-36V 3 x Frequency input W / Pickup 8 x Digital inputs ON/OFF 8 x Relay outputs 4 x CAN Bus 2.0B 1 x Ethernet 100M 1 x Wifi 802.11bgn 1 x USB OTG 1 x NMEA0183 1 x RS232 9-36V <1A 0 +55°C (-20 +70°C on demand) IP65 RINA | |
