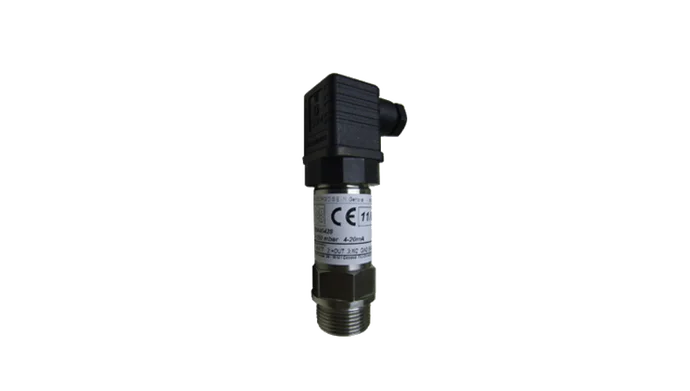

PRESSURE LEVEL SENSORS
TMA40428/x
Pressure level sensors for external installation, compatible with fresh water, grey water and diesel. Continuous level measurement with 0,5% accuracy of full scale. Two-wire 4-20mA output.
Other lenghts on demand.
MODELS
Code TMA40428/1 | Lenght 0-1m (0-0,10bar) → (4-20mA) |
Code TMA40428/2 | Lenght 0-2m (0-0,20bar) → (4-20mA) |
Code TMA40428/3 | Lenght 0-3m (0-0,30bar) → (4-20mA) |
TECHNICAL FEATURES
Output Compatible fluids Sensor type Case material Power supply Protection grade Operating temperature Approval certificate | 4-20mA to 2 wires Fresh water, waste water and diesel Cavo Ø7,5mm Piezo-electric Inox AISI 316L Inox 1Cr18Ni9Ti 12/24V 0,5% full scale IP65 0 +70°C | |
DOCUMENTS
DRAWING
