7" ADVANCED DISPLAY
UNS10195
High performance monitoring and control system specifically designed for naval, professional and pleasure boats applications. It offers a new 7” touch screen display optimized for sun visibility, a new design and many possibilities of connection to on-board apparatus and portable devices. The innovative “Flexible Hardware” electronics provides direct acquisition of many measurement sensors without additional signal converters. Three CAN Bus J1939 ports and one NMEA2000 compatible output make it the perfect device to use with multifunction navigation systems. Datalogger functionality with internal SD card and USB log. It can be customized and programmed via LAN, WiFi and USB interface.
Customizable pages
The interface is neat and easily customizable according to your browsing style.
Pages with black background

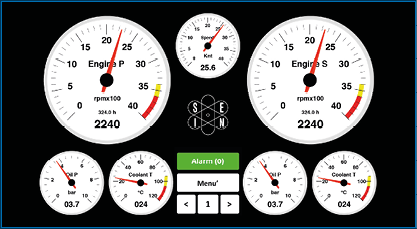

Elegant and innovative design for monitoring up to four engine.
Monitoring levels

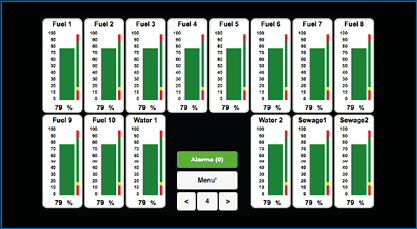

Page for monitoring the tank level sensors.
Night mode page

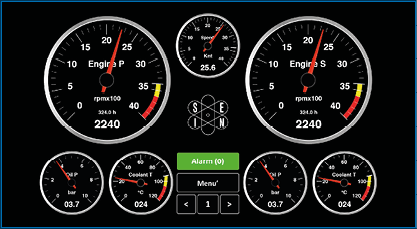

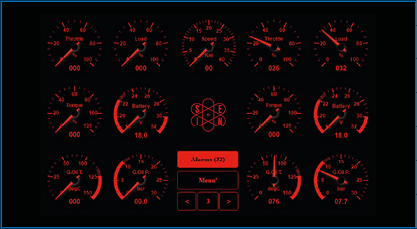

Example of page with analogue indicators for night mode view.
Take control of the dashboard remotely

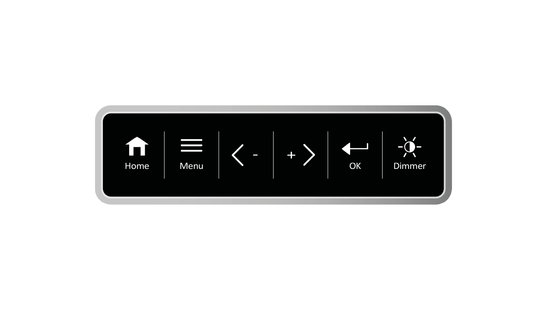

The new UNS10400 keyboard provides remote access and maximum control over the entire UNS10195 on-board system. It includes a set of customizable membrane buttons for control of monitoring system settings.
TECHNICAL SPECIFICATIONS
Mounting hole CPU and Memory Data memory Protection grade Weight Approval certificate | 200 x 143 x 76mm 183 x 135mm 7” color TFT LCD, Antiglare 800 x 480pixel Capacitive Advanced Hybrid CPU Dual Cortex A9 128MB Flash + 16GB SD Card 8 x Analog inputs 0-300Ω 16 x Analog inputs 0-10V/4-20mA 8 x Analog inputs NTC 0-100KΩ 8 x Analog thermocouple inputs 6 x Analog inputs 0-36V 3 x Frequency input W / Pickup 8 x Digital inputs ON/OFF 8 x Relay outputs 4 x CAN Bus 2.0B 1 x Ethernet 100M 1 x Wifi 802.11bgn 1 x USB OTG 1 x NMEA0183 1 x RS232 9-36V <1A 0 +55°C (-20 +70°C on demand) IP65 1300g Protective cover for display RINA | |
