7" PLUS DISPLAY
UNS10193
High performance compact monitoring and control system specifically designed for naval, professional and pleasure boats applications. It offers a 7” touch screen display with integrated ambient light sensor and special software designed for visibility in any light and operating condition. A selection of analog inputs and digital outputs allow direct acquisition of measure sensors without any additional signal converters. Two J1939 CAN Bus ports, one also compatible with NMEA2000 standard, can be used to interface multifunction navigation systems.
Customizable pages
The interface is organize easily customizable to your browsing style.

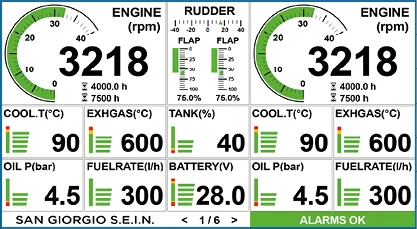

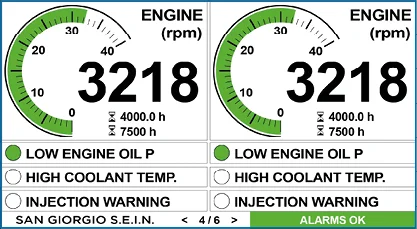

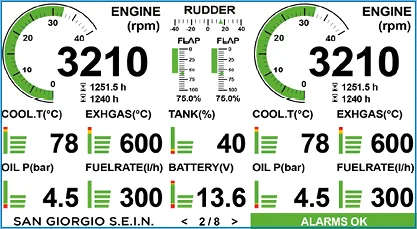

Elegant design
System for monitoring up to two engine.

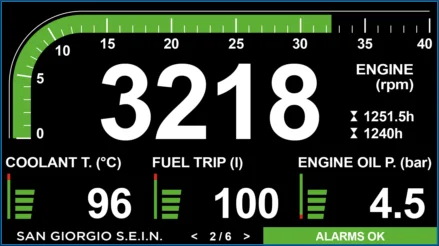

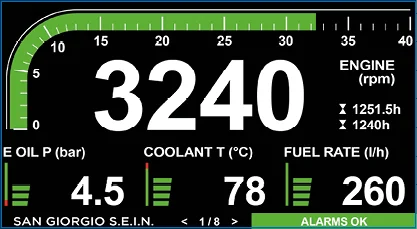

Main page
A new digital tachometer and 3 customizable sensor inputs.

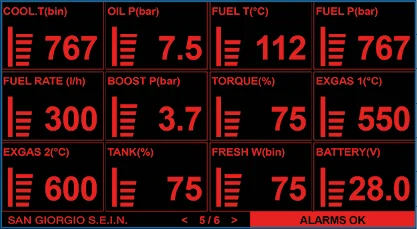

Night mode page
Example of page with analogue indicators for night mode view.
TECHNICAL SPECIFICATIONS
Display Touch screen | 188 x 123 x 69mm 178 x 114mm 7” color TFT LCD, high brightness 700cd 800 x 480pixel Capacitive 4 x Analog inputs 0-10V / 4-20mA 4 x Analog inputs 0-300Ω 1 x Frequency inputs W / pickup 5 x Digital inputs/outputs 2 x CAN Bus 2.0B 1 x NMEA2000 1 x NMEA0183 1 x RS232/485 1 x USB OTG 9-36V <1A -20 +70°C IP65 720g Protective cover for display | |
DOCUMENTS
DRAWING
USER MANUAL
INSTALLATION
